Auto Timer For Ultra Membrane Filter

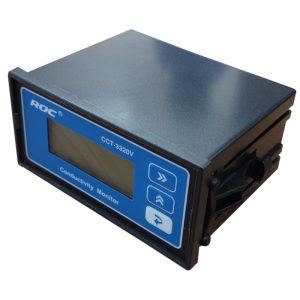

Conductivity Monitor CCT-3320V
| Dimensions (mm) | 48×96×100 |
|---|---|
| Measurement Range | 0-2000µS/cm |
| Three Available Measurement Ranges | 0-20.00µS/cm, 0-200.0µS/cm, and 0-2000µS/cm |
| Display | 3.5 digits 0.5’’ Backlight LCD for conductivity display |
| Temperature Compensation | Automatically, range 0-60°C, compensation point 25°C |
| Accuracy | ± 2% (F·S) |
| Electrode | 1.00cm-1 plastic platinum holder, 4’ pipe-thread, cable length 5m |
| Alarm Output | According to upper limit of conductivity and rated output: 3A, 220VAC |
| DC 4-20mA Output | Fulfilled by upper limit of conductivity value to alarm |
| Dimensions | Frame Dimension: 96×48 (mm) Panel Dimension: 91×45 (mm) Depth: 100 (mm) |
| Power Supply | 220 VAC ± 10%, 50Hz |
| Working Condition | Environment Temperature 0-50°C, RH<=85% |
| Testing Standard | JB/T6855 |
P.C Board (ROC-2015)
WD-936 (Hot, Normal& Cold ) Direct Piping Table Top Water Dispenser
| Type Dispenser | Table Top |
|---|---|
| Cooling Type | Compressor |
| Voltage | 220-240V |
| Heating Power | 400W |
| Cooling Power | 70W |
| Hot Tank Capacity | 1.0L |
| Cold Tank Capacity | 3.3L |
| Normal Tank | 1L |
| Hot Water Process | 5L/H |
| Cold Water Process | 2L/H |
| Cold Water Temperature | 6-10 degree Celsius |
| Hot Water Temperature | 80-95 degree Celsius |
| Weight of Dispenser | 11.4kg |
| Height | 520mm |
| Length | 332mm |
| Depth | 420mm |
| Suitable Use For | Office, Event Hall, Kitchen / Pantry or F&B Front Desk |
