HomeVending Machine Vending Machine Coin Slot – SG 9
Previous product
R.O. FAUCET K-32 (2way) RM50.00
Back to products
Next product
Vending Machine Coin Slot SG-648 RM260.00

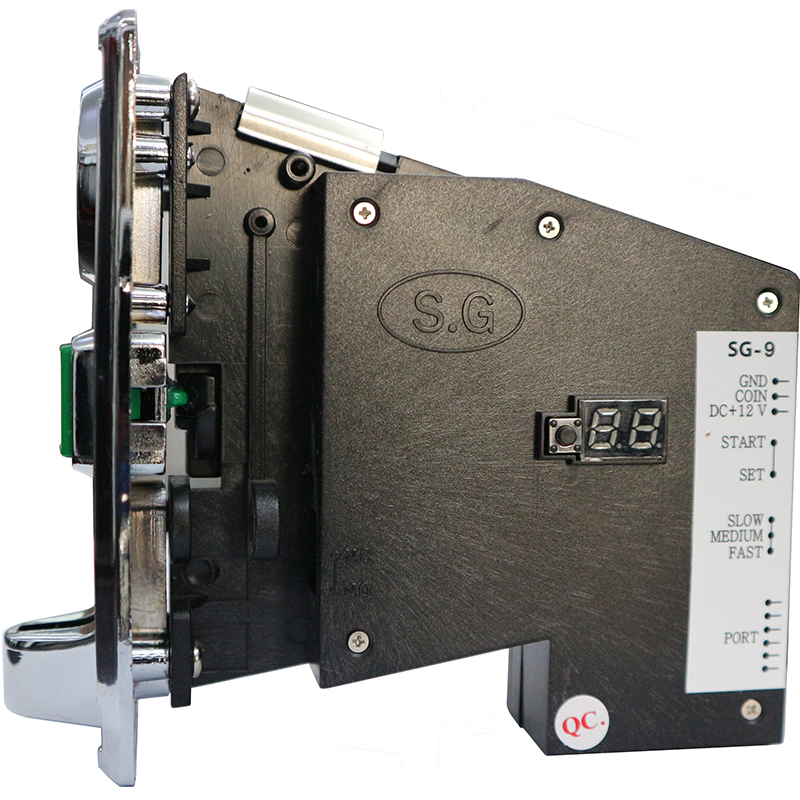

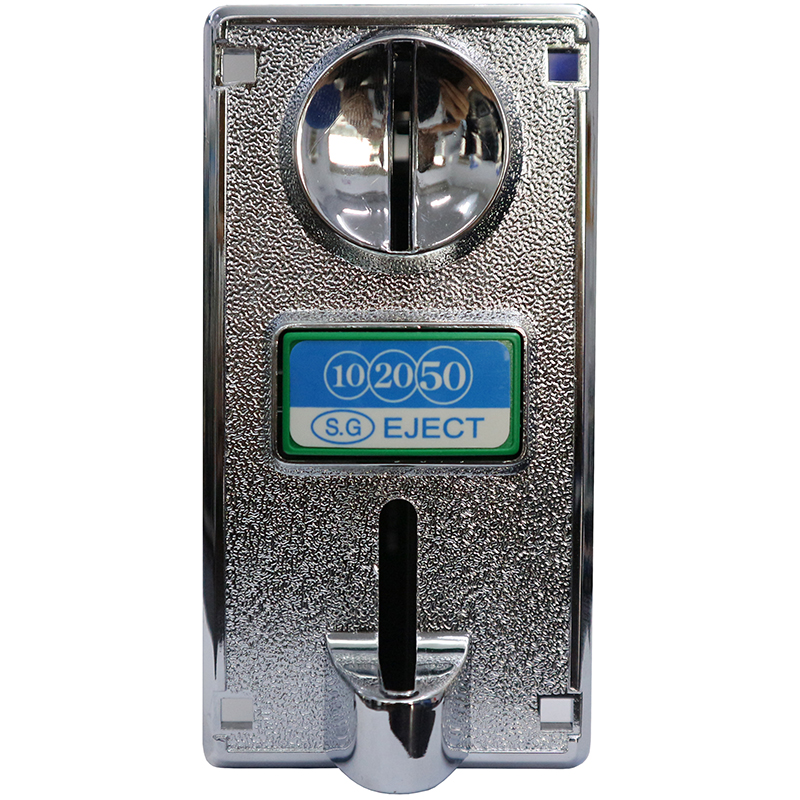

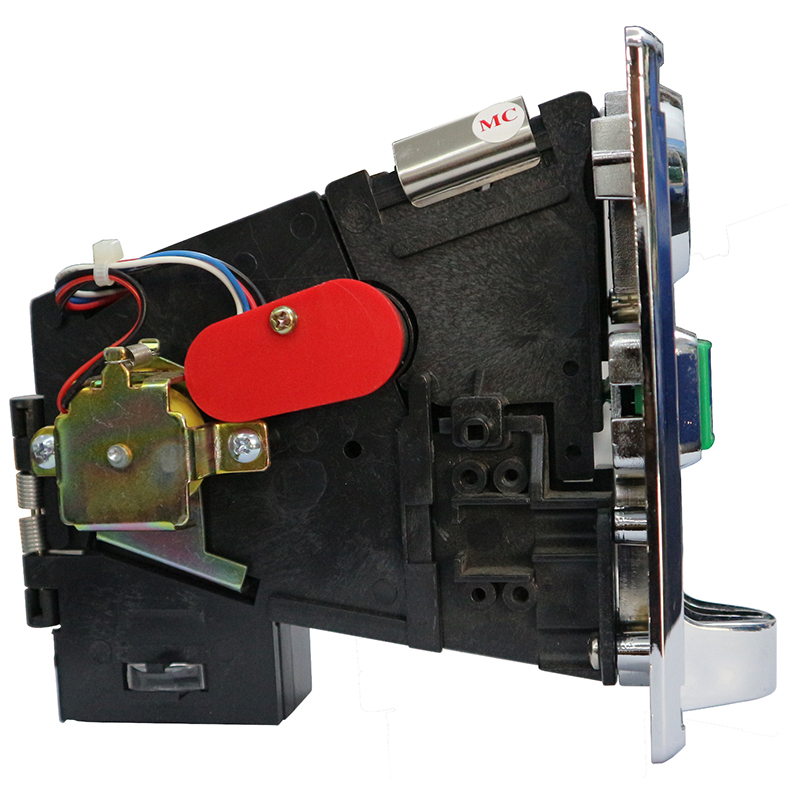

Vending Machine Coin Slot – SG 9

RM240.00

  • Tested accepting all Malaysia Coins
  • Intelligent Micro-chip control, and high accuracy
  • Programable without PC
  • Widely use for vending machine
Add to wishlist
Category: Vending Machine
Share
  • Description
Description

Guidance to Program Coin Selector SG-9

Characteristic Of Coin Selector SG-9

  1. Program for 14 Types of Coin and get 10 coins to Program per Each Type
  2. Increase or Repeat of Each Coin’s Type is ability when Program
  3. High Speed of Coin Receiving and ongoing to insert Coin

Step of Setting Program Coins (plug the power supply at least 10 minutes before setting)

  1. Adapt Switch Start at “SET” LED Display will show “0”
  2. Delete all Programs before, press and hold TactSW. Until hear 1 PEEP LED Display show “C” before changing to be “0”
  3. Setting Value of Coin, press Tact SW up to value of coin which desire Insert 1 coins / time until hear Repeatly PEEP LED Display show “F” before changing to be “0” and Then press TactSW to setting new type of coin.
  4. Adapt Switch Set at position “START” LED Display show Coin’s number of time that was programed in coin selector and ready to usable
  5. Increase or delete Program of each Coin should making by step 1
    • Increase type of coins press TactSW up to the value of coin by step 3
    • Delete only type of coin, press TactSW up to the value of coin and then press and hold “TactSW” until show “0”

Paticularly Data

The Diameter of Coin 18mm-30mm
The Thickness of Coin 18mm-30mm
Electric Pressure DC 12V +/- 20%
Red Wire DC + 12V
White Wire Coin Signal
Black Wire GND (GROUND)

Speed Pulse

Fast 25ms
Medium 45ms
Slow 65ms
